Construction Details

Download our contstruction manual.

View illustrations from the manual

click an image to enlarge and view in a slide show.

Construction detail drawing of a wall opening with joists, studs, and labeled dimensions.
Button

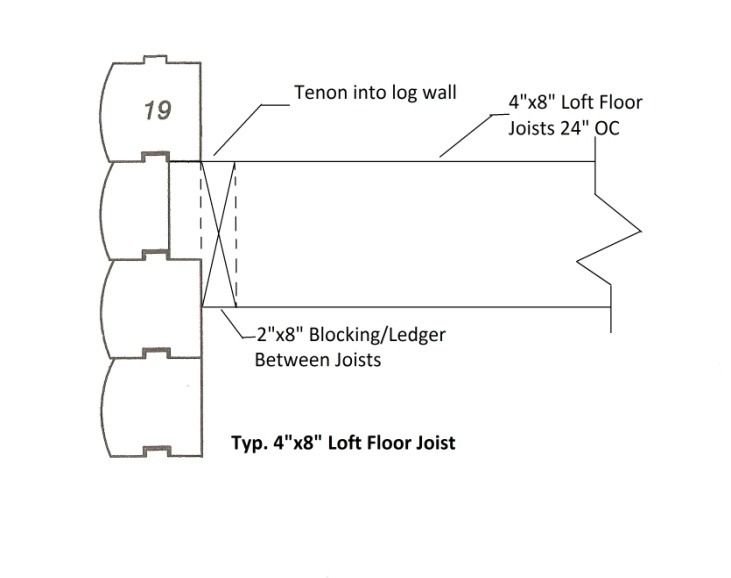

Structural detail drawing of loft floor joists and blocking/ledger with tenon into wall
Button

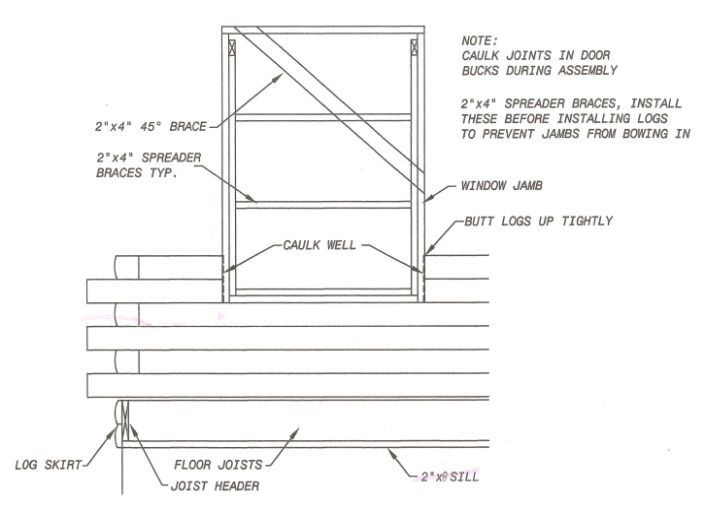

Technical sketch of a window frame and sash with labeled joints, braces, and sill details on stairs.
Button
Technical drawing of a temporary wall brace with notes, floor plan references, and lumber measurements.
Button

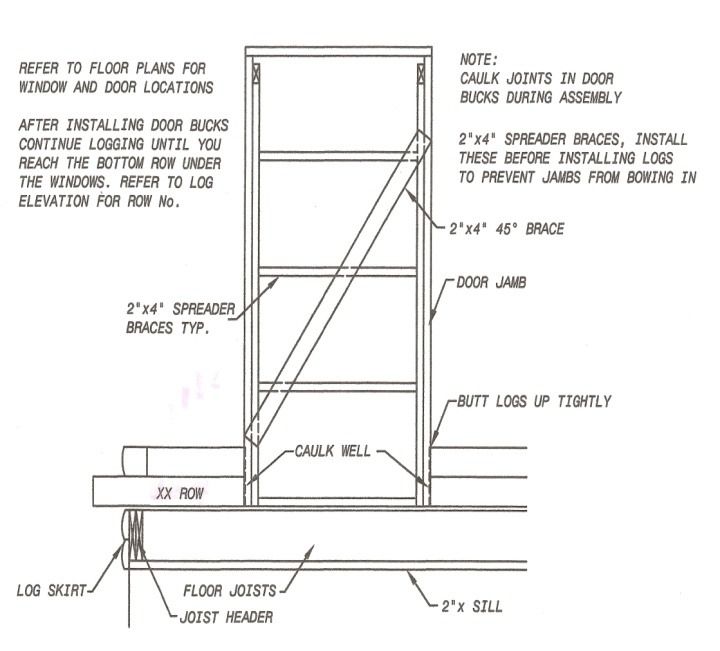

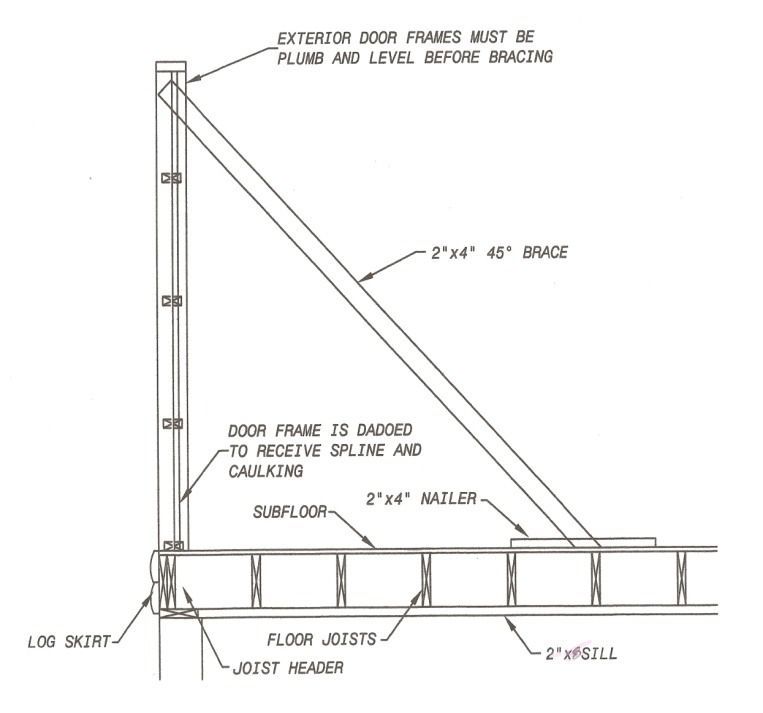

Framed doorway detail sketch with diagonal brace, floor joists, and construction notes
Button

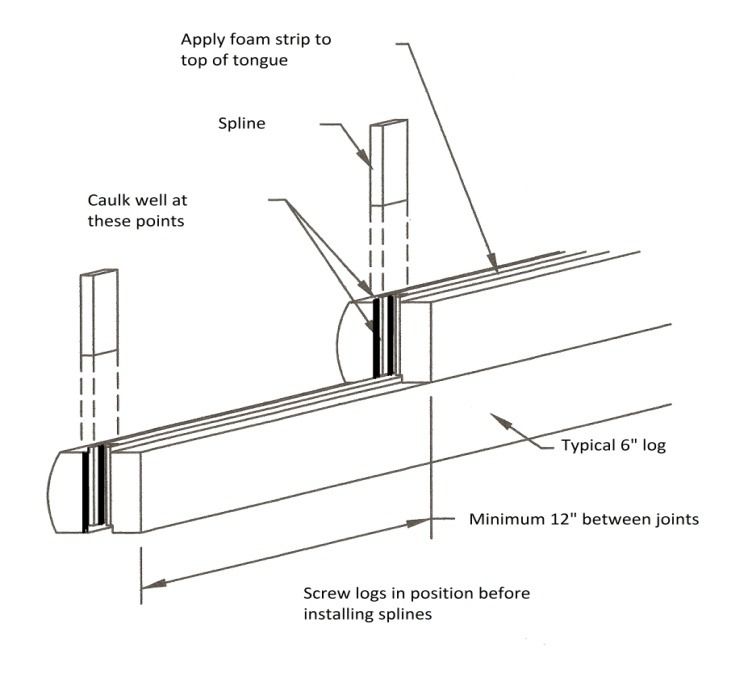

Diagram showing wood log splice joint with splines, caulked wall pass-through, and spacing notes.
Button

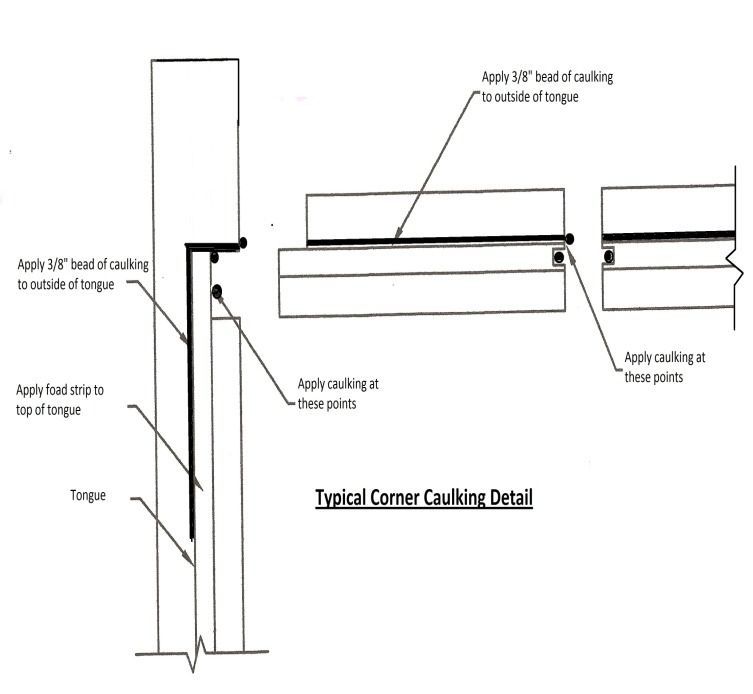

Technical diagram showing a typical corner caulking detail with labeled trim and sealant layers
Button

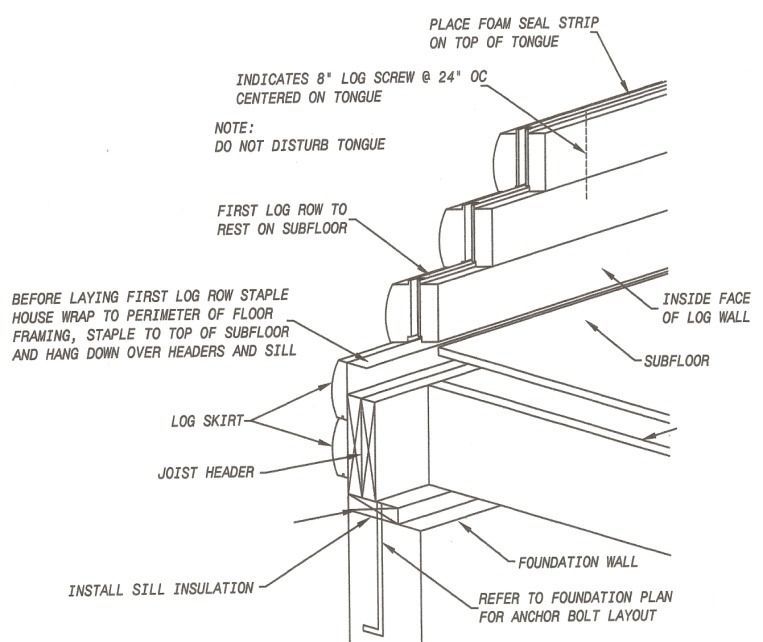

Construction detail drawing of a floor joist and wall with installation notes and labels
Button
Construction detail diagram of a masonry wall, footing, and floor slab with labeled materials and drainage layers
Button

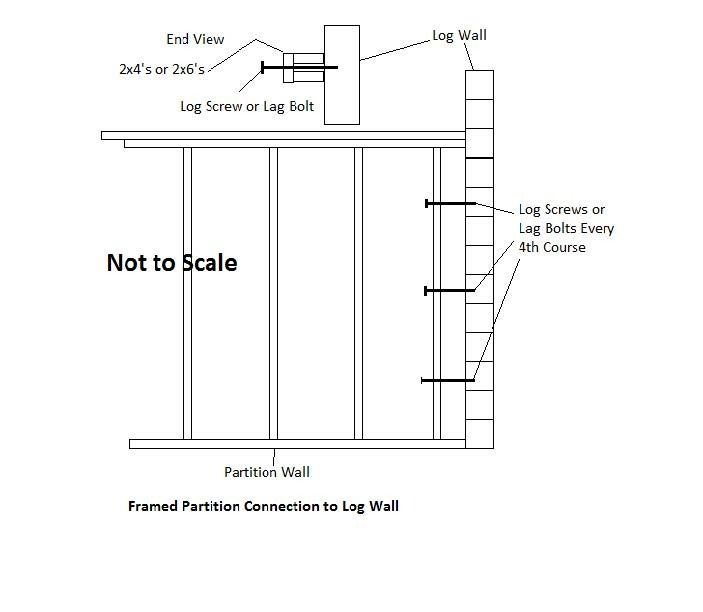

Technical framing diagram of a framed partition connected to a log wall, labeled “Not to Scale.”
Button

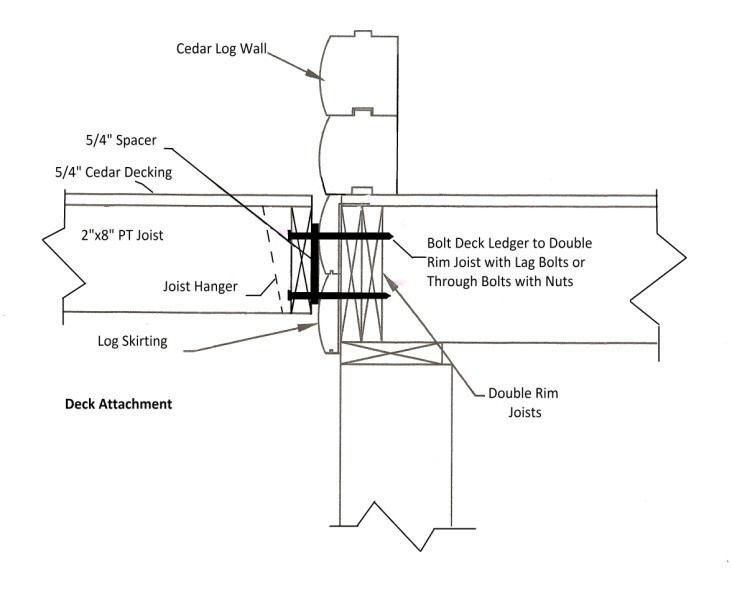

Diagram of deck attachment details showing lag wall, joist hanger, rim joists, and bolt connections
Button

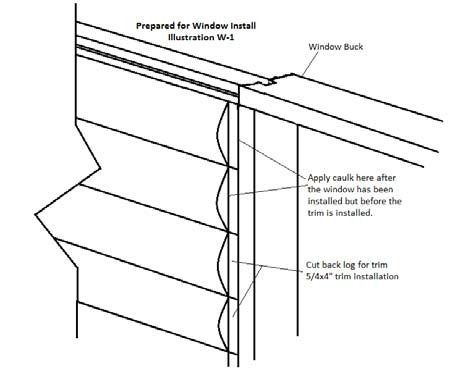

Window install diagram showing window buck, siding, and caulk bead placement after house wrap installation
Button

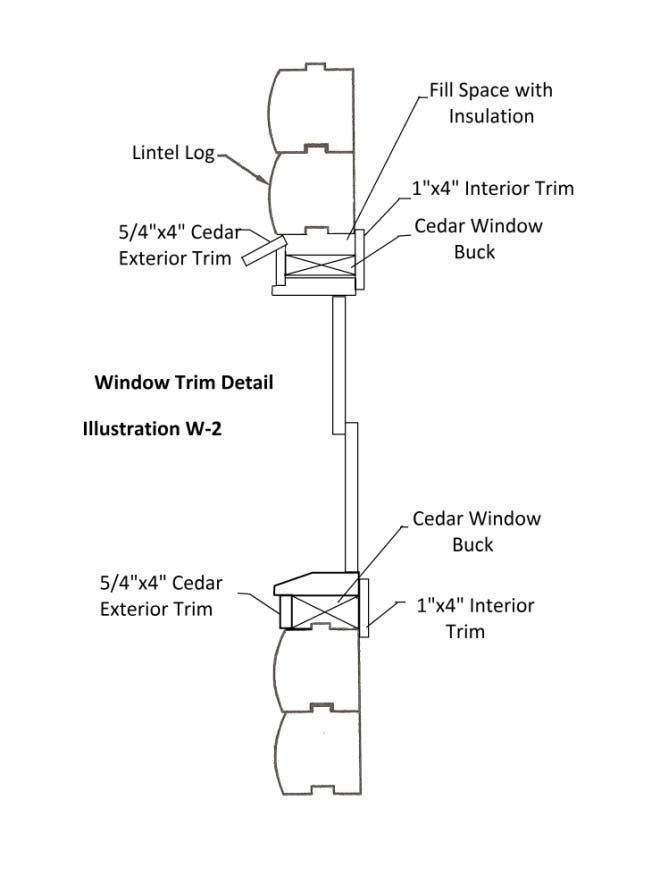

Technical drawing of window trim detail with labeled cedar trim, interior trim, buck, and insulation labels
Button

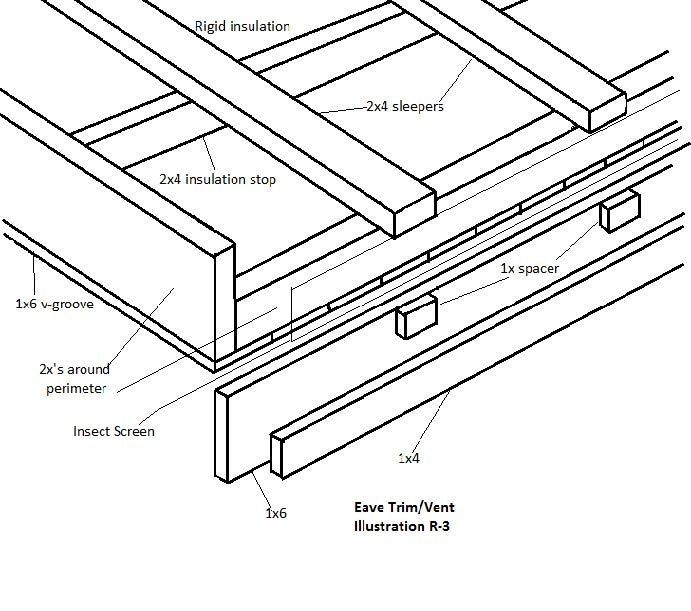

Technical diagram of layered roof insulation and vent detail, labeled with insulation, spacer, and vent components.
Button
Technical drawing of a folding loft ladder, showing side view with labeled parts and dimensions.
Button

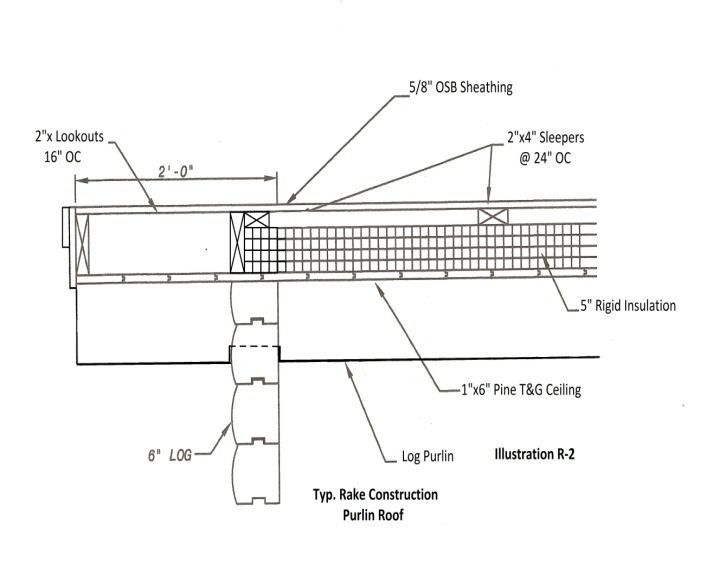

Technical roof section drawing with labeled insulation, vapor barrier, and metal deck details
